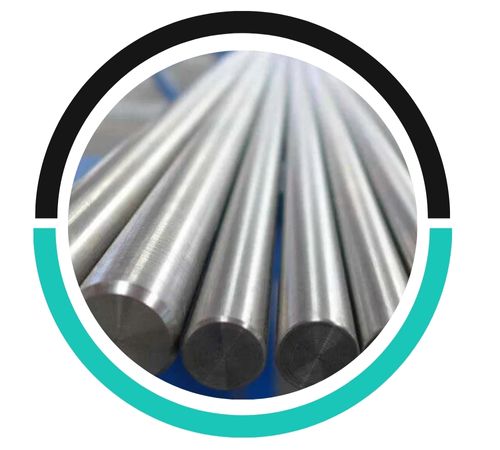

Rashid Metals in Muscat, Oman is known for supplying high quality Titanium Round Bars that bring reliability, strength and long-term performance to industries that refuse to compromise. Built with precision and crafted for stability, these titanium bars are trusted by companies that operate in extreme conditions and need materials that never fail under pressure. Rashid Metals focuses on purity, accuracy and honest workmanship, ensuring every bar meets strict global standards. With exceptional corrosion resistance, low weight and impressive durability, their Titanium Round Bars help customers create equipment, structures and systems that must perform with confidence every single day.
Titanium Round Bars are manufactured using high-purity titanium known for its lightweight structure, remarkable corrosion resistance and dependable mechanical stability. These bars deliver strong tensile strength, excellent ductility and reliable toughness, even at low temperatures. The material naturally forms a protective oxide layer, giving it exceptional resistance against chemicals, moisture and harsh environments. Titanium’s low density makes the bars incredibly strong for their weight, while maintaining superior fatigue resistance. Overall, the mechanical properties make Titanium Round Bars an ideal material where purity, resilience and long-term performance are essential.
| Grade | Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, Gr 12, Gr 23, TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23 | |||||
| Sizes | Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm | |||||
| Standard | ASTM F136, ASTM B348, ASTM F136, ASTM F67, AMS4928, ISO-5832-2(3), MIL-T-9047G, JIS etc | |||||
| Type | Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock | |||||
| Condition | R/M /Y | |||||
| AMS Specificaton of Titanium Round Bar | AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931, AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI) and More. | |||||
| Titanium Round Bar Uses |
|
|||||
| Titanium Round Bar Order & Packing Information | ||||||
| Min. Order: 10 Pieces (or please enquire for your customized order) Trade Terms: FOB, CIF Payment Terms: L/C, T/T Packing: as per requirement Place of Origin: Mumbai, India Means of Transport: Land, Ocean Delivery Date: one or two week Package: in wooden crate with plastic caps on each end. | ||||||
| Titanium Alloy Round Bar Grades | Commercially Pure Titanium and Titanium Alloys: 6Al-4V ELI | 6Al-4V | 6Al-6V-2SN | 6Al-2SN-4ZR-6MO | 7Al-4Mo Grade 1 | Grade 2 | Grade 4 | Grade 17 | |||||
|
Hardness, Brinell |
120 |
120 |
annealed |
|
Hardness, Knoop |
132 |
132 |
Estimated from Brinell. |
|
Hardness, Rockwell B |
70 |
70 |
annealed |
|
Hardness, Vickers |
122 |
122 |
Estimated from Brinell |
|
Tensile Strength, Ultimate |
240 MPa |
34800 psi |
– |
|
Tensile Strength, Yield |
170 – 310 MPa |
24700 – 45000 psi |
– |
|
Elongation at Break |
24 % |
24 % |
– |
|
Reduction of Area |
35 % |
35 % |
– |
|
Modulus of Elasticity |
105 GPa |
15200 ksi |
In Tension |
|
Compressive Modulus |
110 GPa |
16000 ksi |
– |
|
Poisson’s Ratio |
0.37 |
0.37 |
– |
|
Charpy Impact |
310 J |
229 ft-lb |
V-notch |
|
Shear Modulus |
45 GPa |
6530 ksi |
– |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8 – 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6 – 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9-h10-h11 |
Titanium Alloy Bars Standard lengths of 2010 mm up to 200 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 201.0 |
Titanium Round Bars are commonly used in aerospace, medical, automotive, and chemical industries due to their strength, corrosion resistance, and lightweight properties.
Titanium Round Bars offer exceptional strength-to-weight ratio, excellent corrosion resistance, and high durability, making them ideal for demanding applications in extreme environments.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rashidmetals.com
Titanium Round Bars are used across industries that depend on materials offering unbeatable strength, low weight and long-lasting corrosion resistance. They are commonly used in aerospace components, marine parts, high-performance automotive systems and chemical processing equipment. In medical fields, these bars are valued for their biocompatibility and are used in surgical instruments and orthopedic implants. Industries such as oil and gas, desalination, power generation and industrial machinery also rely on titanium bars for their stability under extreme temperatures and aggressive environments. Wherever durability and precision are required, Titanium Round Bars prove their worth.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Rashid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Muscat, OMAN
